Hole cutting tool
Modular knife (K interface)
Latest information updating....

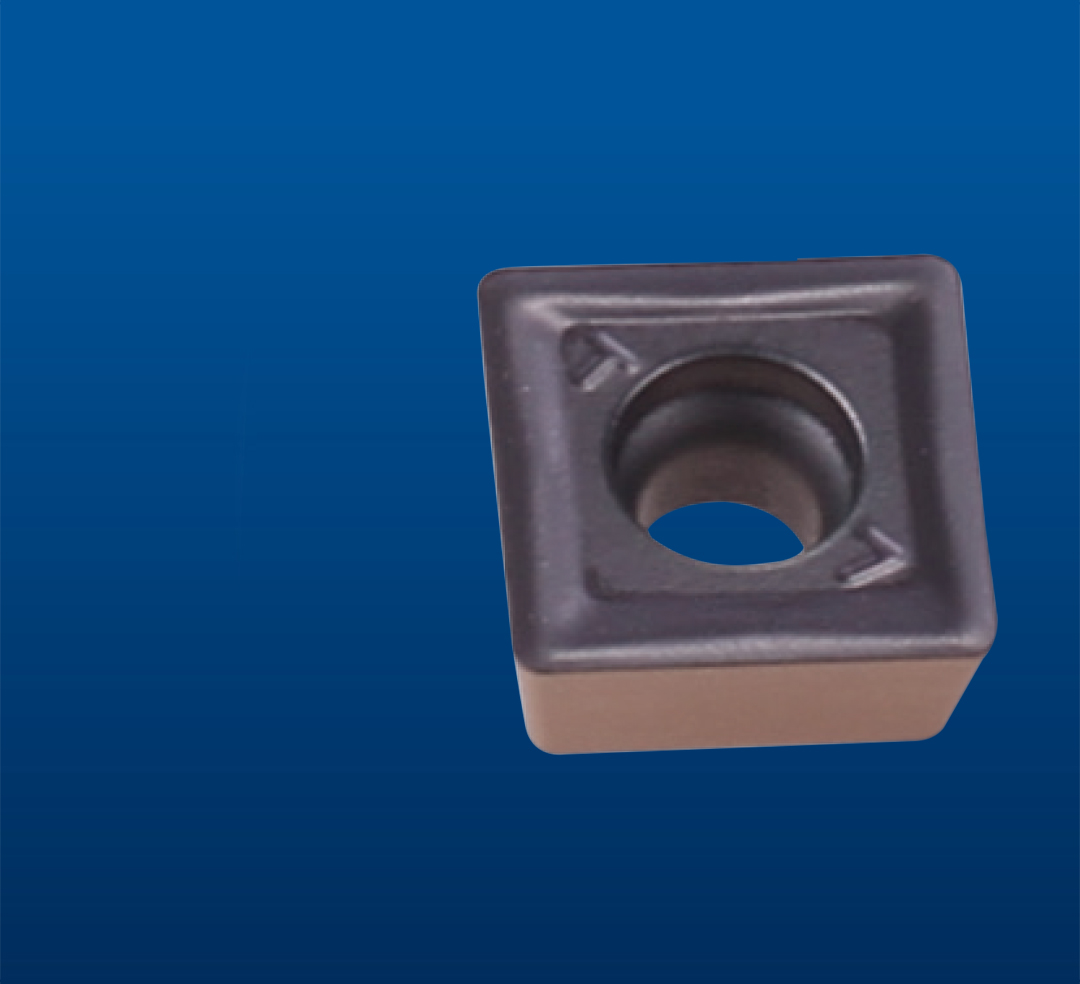

Type SO Insert
Designation | Size | Material | Recommended cutting parameter | ||||||||

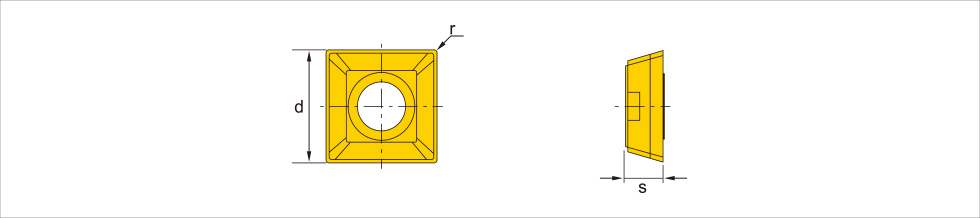

r | S | d | P | M | K | N | S | H | ap(mm) | fz(mm/z) | |
SOMX 060304-D4G 2225 | 0.4 | 3.2 | 6.2 | ● | ● | ● | ● | 0.50-2.50 | 0.08-0.20 | ||
SOMX 070305-D4G 2225 | 0.5 | 3.6 | 7.7 | ● | ● | ● | ● | 0.70-2.50 | 0.15-0.25 | ||
SOMT 09T306-D4G 2225 | 0.6 | 3.81 | 9 | ● | ● | ● | ● | 0.80-3.00 | 0.08-0.20 | ||
SOMT 120408-D4G 2225 | 0.8 | 4.76 | 12.7 | ● | ● | ● | ● | 0.80-3.50 | 0.08-0.25 | ||
SOMT 160512-D4G 2225 | 1.2 | 5.56 | 16 | ● | ● | ● | ● | 0.80-4.00 | 0.08-0.30 |
●Insert with different materials should be ordered separately.
