Type CC Insert_Sund tool

Home > Product Lines > Hole Making > Inserts for Boring System>Type CC Insert

Overview
How to use
Successful Cases
Related Videos

Product Features

Latest information updating....

Product Ranges

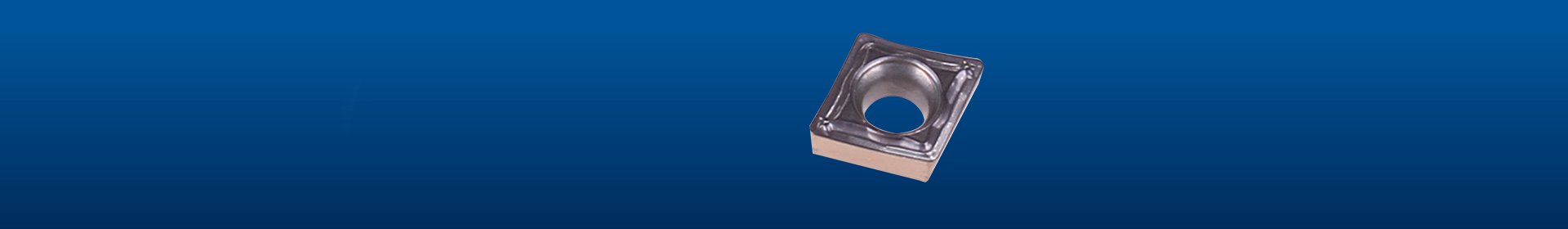

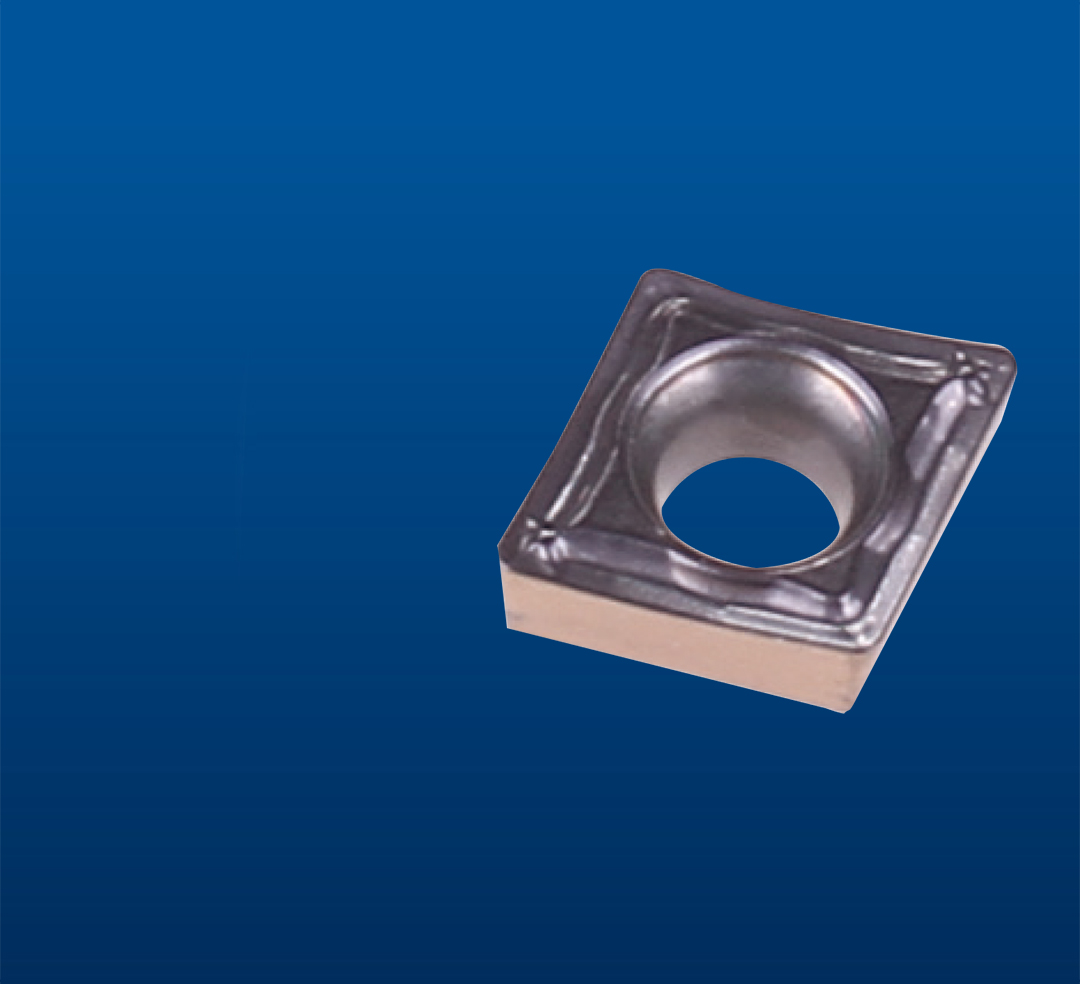

Type CC Insert

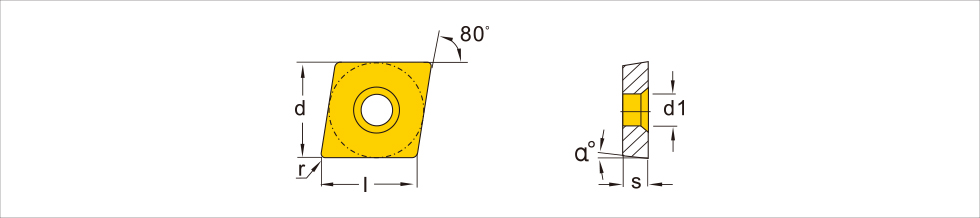

Designation	Size				Material						Recommended cutting parameter
Designation	l	di	S	r	P	M	K	N	S	H	VC(m/min)	ap(mm)	f(mm/rev)
CCMT 060204-F2P 1115	6.5	6.35	2.38	0.4	●						120-300	0.10-1.50	0.05-0.20
CCMT 060204-M2P 1115	6.5	6.35	2.38	0.4	●						120-300	0.50-2.50	0.08-0.30
CCMT 060204-M2M 1225	6.5	6.35	2.38	0.4		●					100-250	0.50-2.50	0.08-0.30
CCMT 060204-M2K 1115	6.5	6.35	2.38	0.4			●				150-350	0.50-2.50	0.08-0.30
CCMT 060204-F2S 1215	6.5	6.35	2.38	0.4					●		40-70	0.20-1.50	0.03-0.20
CCMT 060208-M2P 1125	6.5	6.35	2.38	0.8	●						120-280	0.50-2.50	0.08-0.35
CCMT 060208-M2K 1115	6.5	6.35	2.38	0.8			●				120-300	0.50-2.50	0.08-0.35
CCMT 09T304-F2P 1115	9.7	9.525	3.97	0.4	●						150-300	0.20-2.00	0.05-0.20
CCMT 09T304-M2P 1115	9.7	9.525	3.97	0.4	●						120-280	0.50-2.50	0.08-0.30
CCMT 09T304-M2M 1225	9.7	9.525	3.97	0.4		●					100-250	0.50-2.50	0.08-0.30
CCMT 09T304-M2K 1115	9.7	9.525	3.97	0.4			●				150-350	0.50-2.50	0.08-0.30
CCMT 09T304-F2S 1215	9.7	9.525	3.97	0.4					●		40-70	0.20-1.50	0.03-0.20
CCMT 09T308-R1P 1125	9.7	9.525	3.97	0.8	●						120-280	1.00-3.50	0.15-0.40
CCMT 09T308-M2M 1225	9.7	9.525	3.97	0.8		●					120-280	0.50-3.50	0.08-0.30
CCMT 09T308-M2K 1115	9.7	9.525	3.97	0.8			●				150-350	0.50-3.50	0.08-0.35
CCMT 120404-M2P 1125	12.9	12.7	4.76	0.4	●						120-280	0.50-2.50	0.08-0.30
CCMT 120404-M2M 1225	12.9	12.7	4.76	0.4		●					150-300	0.50-2.50	0.08-0.30
CCMT 120404-M2K 1115	12.9	12.7	4.76	0.4			●				150-350	0.50-2.50	0.08-0.30
CCMT 120408-M2P 1125	12.9	12.7	4.76	0.8	●						120-280	0.50-2.50	0.08-0.30
CCMT 120408-R1P 1125	12.9	12.7	4.76	0.8	●						120-280	1.00-3.50	0.15-0.40
CCMT 120408-M2M 3220	12.9	12.7	4.76	0.8	●	●					100-280	0.50-3.50	0.08-0.30
CCMT 120408-M2K 1115	12.9	12.7	4.76	0.8			●				200-350	0.50-3.50	0.08-0.30

Type CC Insert

Designation	Size				Material						Recommended cutting parameter
Designation	l	di	S	r	P	M	K	N	S	H	VC(m/min)	ap(mm)	f(mm/rev)
CCGT 060204-F4N 1015	6.5	6.35	2.38	0.4				●			300-1000	0.5-2.50	0.1-0.25
CCGT 060204-F5N 1010	6.5	6.35	2.38	0.4				●			300-1000	0.5-2.50	0.1-0.25
CCGT 09T304-F4N 1015	9.7	9.525	3.97	0.4				●			300-1000	0.5-3.00	0.1-0.25
CCGT 09T304-F5N 1010	9.7	9.525	3.97	0.4				●			300-1000	0.5-3.00	0.1-0.25
CCGT 09T308-F4N 1015	9.7	9.525	3.97	0.8				●			300-1000	0.5-3.50	0.1-0.30
CCGT 09T308-F5N 1010	9.7	9.525	3.97	0.8				●			300-1000	0.5-3.50	0.1-0.30
CCGT 120404-F4N 1015	12.9	12.7	4.76	0.4				●			300-1000	0.5-3.00	0.1-0.25
CCGT 120408-F5N 1010	12.9	12.7	4.76	0.8				●			300-1000	0.5-4.00	0.1-0.30
CCGT 120408-F4N 1015	12.9	12.7	4.76	0.8				●			300-1000	0.5-4.00	0.1-0.30
