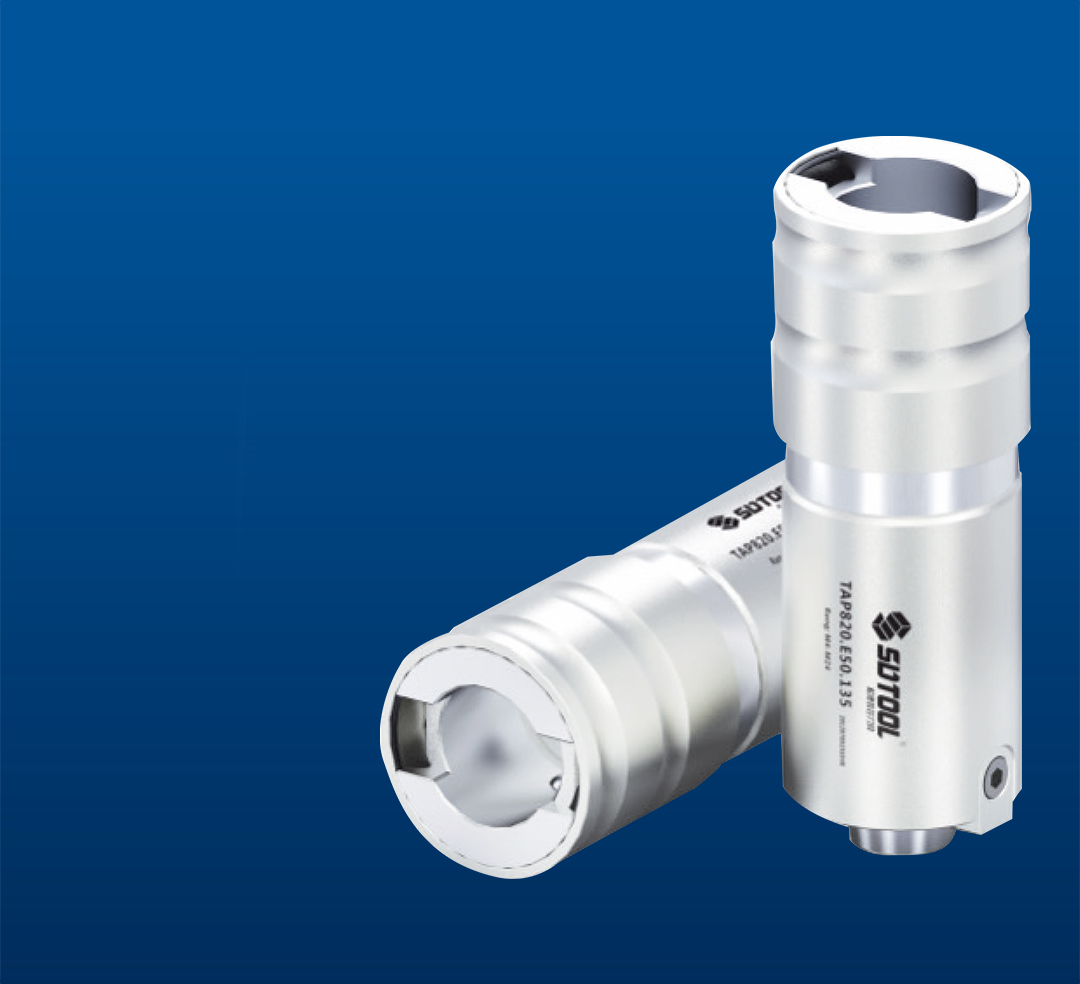

Extension for Tapping Chuck Adaptor

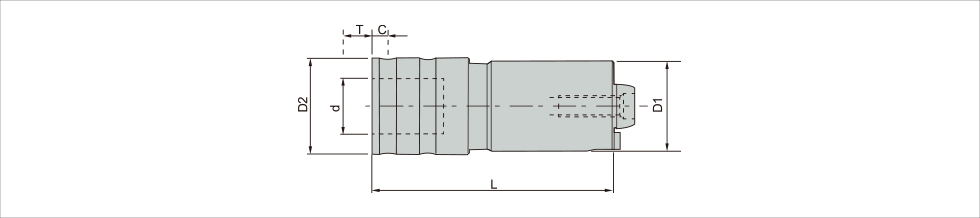

Designation | D1 | d | D2 | L | Length compensation | Tap | Kg | |
T | C | |||||||
TAP412.E40.110 | 40 | 19 | 36 | 110 | 9 | 5 | M4-M12 | 0.7 |
TAP820.E50.135 | 50 | 31 | 53.5 | 135 | 16 | 9 | M8-M20 | 1.7 |
TAP1433.E63.180 | 63 | 48 | 78 | 180 | 26 | 15 | M14-M33 | 4.1 |
TAP2248.E63.196 | 63 | 60 | 96 | 196 | 28 | 17 | M22-M48 | 6.2 |
●The adaptor should be ordered separately, please click here.
●Multiple quick change chucks for corresponding tool holder, please click here.
