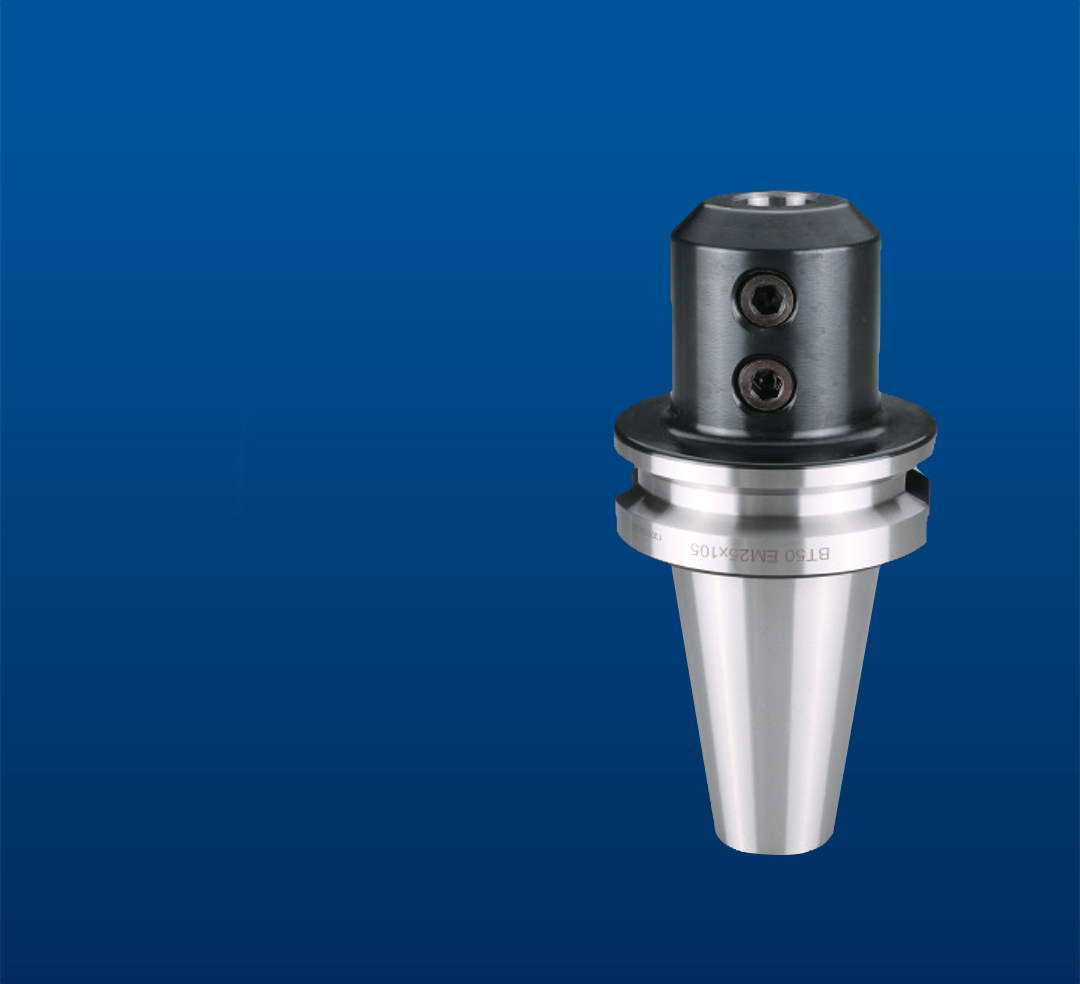

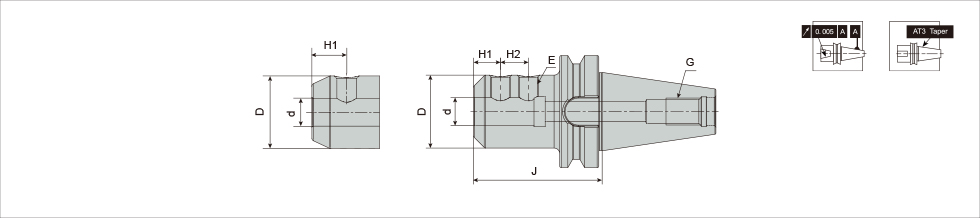

Weldon Adaptor
Designation | d | D | L | H1 | H2 | E | G | Kg |
BT30 EM16x60 | 16 | 46 | 60 | 24 | - | M14 | M12 | 0.79 |
BT30 EM20x80 | 20 | 52 | 80 | 25 | - | M16 | M12 | 1.04 |
BT40 EM16x65 | 16 | 48 | 65 | 24 | - | M14 | M16 | 1.35 |
BT40 EM20x75 | 20 | 52 | 75 | 25 | - | M16 | M16 | 1.54 |
BT40 EM25x105 | 25 | 65 | 105 | 24 | 25 | M18x2 | M16 | 2.5 |
BT40 EM32x110 | 32 | 72 | 110 | 24 | 28 | M20x2 | M16 | 2.84 |
BT50 EM16x100 | 16 | 48 | 100 | 24 | - | M14 | M24 | 4.21 |
BT50 EM20x100 | 20 | 52 | 100 | 25 | - | M16 | M24 | 4.28 |
BT50 EM25x115 | 25 | 65 | 115 | 24 | 25 | M18x2 | M24 | 5.06 |
BT50 EM32x115 | 32 | 72 | 115 | 24 | 28 | M20x2 | M24 | 5.28 |
BT50 EM40x115 | 40 | 90 | 115 | 30 | 32 | M20x2 | M24 | 6.18 |
BT50 EM50x125 | 50 | 100 | 125 | 35 | 35 | M24x2 | M24 | 6.94 |
●If needing the hole for data chip, please add "X" at the end of the designation.

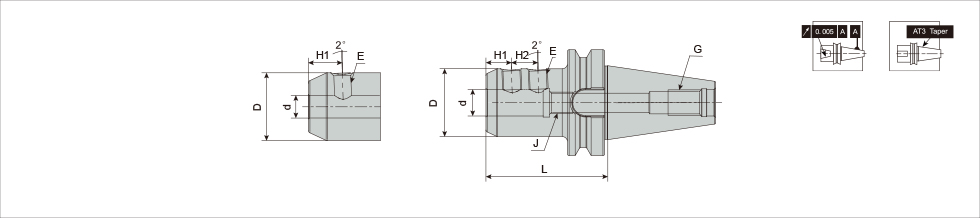

2° Weldon Adaptor
Designation | d | D | L | H1 | H2 | E | J | G | Kg |
BT40 EM16x65E | 16 | 48 | 65 | 24 | - | M14 | M12 | M16 | 1.38 |
BT40 EM20x75E | 20 | 52 | 75 | 25 | - | M16 | M16 | M16 | 1.55 |
BT40 EM25x105E | 25 | 65 | 105 | 24 | 22 | M18x2 | M20X2 | M16 | 2.47 |
BT40 EM32x110E | 32 | 72 | 110 | 24 | 24 | M20x2 | M20X2 | M16 | 2.8 |
BT50 EM16x100E | 16 | 48 | 100 | 24 | - | M14 | M12 | M24 | 4.27 |
BT50 EM20x100E | 20 | 52 | 100 | 25 | - | M16 | M16 | M24 | 4.36 |
BT50 EM25x115E | 25 | 65 | 115 | 24 | 22 | M18x2 | M20X2 | M24 | 5.08 |
BT50 EM32x115E | 32 | 72 | 115 | 24 | 24 | M20x2 | M20X2 | M24 | 5.25 |
BT50 EM40x115E | 40 | 90 | 115 | 30 | 30 | M20x2 | M20X2 | M24 | 6.19 |
BT50 EM50x125E | 50 | 98 | 125 | 35 | 33 | M24x2 | M20X2 | M24 | 6.94 |
●The center adjustable screw should be ordered separately,if needed, please click here.
●If needing the hole for data chip, please add "X" at the end of the designation.
