Home > Product Lines > Hole Making > Cartridges for Boring System>Cartridge for Heavy Duty Cutting

Product Features

● Simple structure, long service life, strong reliability

● The main use of heavy cutting tool base is: non-standard compound tool, it is convenient to protect non-standard tool body from being damaged

● Heavy-duty cutting tool base is the tool base for heavy-duty cutting



  • Steel

  • Stainless steel

  • Cast iron

  • Non-ferrous metal

  • Super Heat resistant alloy

  • Hardened steel

Product Ranges

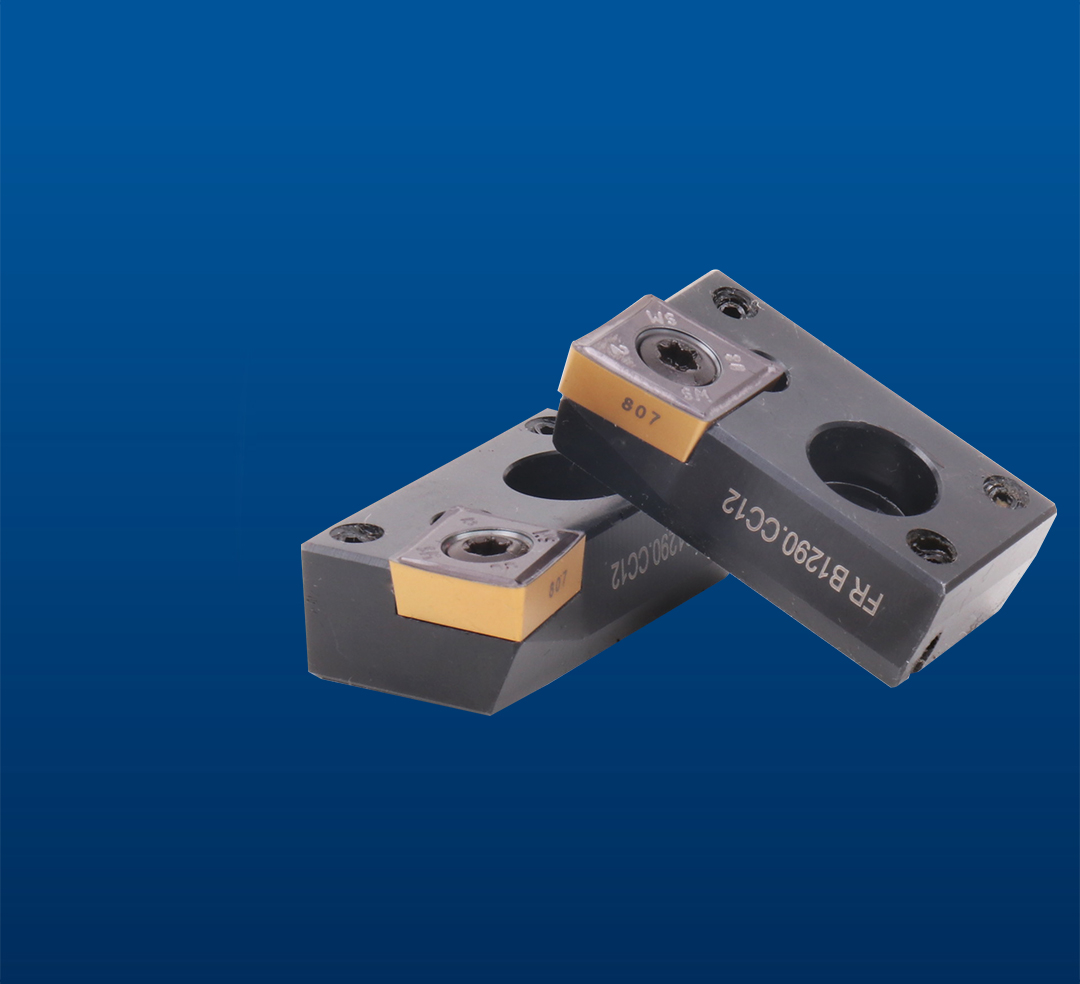

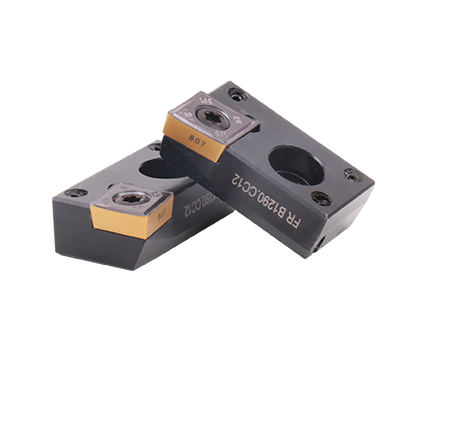

Cartridge for Heavy Duty Cutting


Approach angleRight handLeft handad1d2efh1l1TInsert
15°FR B0875.CC06FL B0875.CC061.232512.314.3824.15.9CC..0602..
FR B1075.CC09FL B1075.CC09240612.318.31028.37.5CC..09T3..
FR B1275.CC12FL B1275.CC122.848712.322.31233.59.2CC..1204..
90°FR B0890.CC06FL B0890.CC06-32512.314.3825.35.9CC..0602..
FR B1090.CC09FL B1090.CC09-40612.318.31030.37.5CC..09T3..
FR B1290.CC12FL B1290.CC12-48712.322.31236.39.2CC..1204..
FR B1290.TC16FL B1290.TC16-48712.322.31236.39.2TC..16T3..
15°FR B1075.SC09FL B1075.SC09240612.318.31028.37.5SC..09T3..
FR B1275.SC12FL B1275.SC122.848712.322.31233.59.2SC..1204..
30°FR B1030.SC09FL B1030.SC09440612.318.31026.37.5SC..09T3..
FR B1230.SC12FL B1230.SC125.748712.322.31230.69.2SC..1204..
45°FR B1045.SC09FL B1045.SC096.140612.318.31024.27.5SC..09T3..
FR B1245.SC12FL B1245.SC129.348712.322.312289.2SC..1204..

●Inserts with different materials should be ordered separately, please click here.
