Hole cutting tool

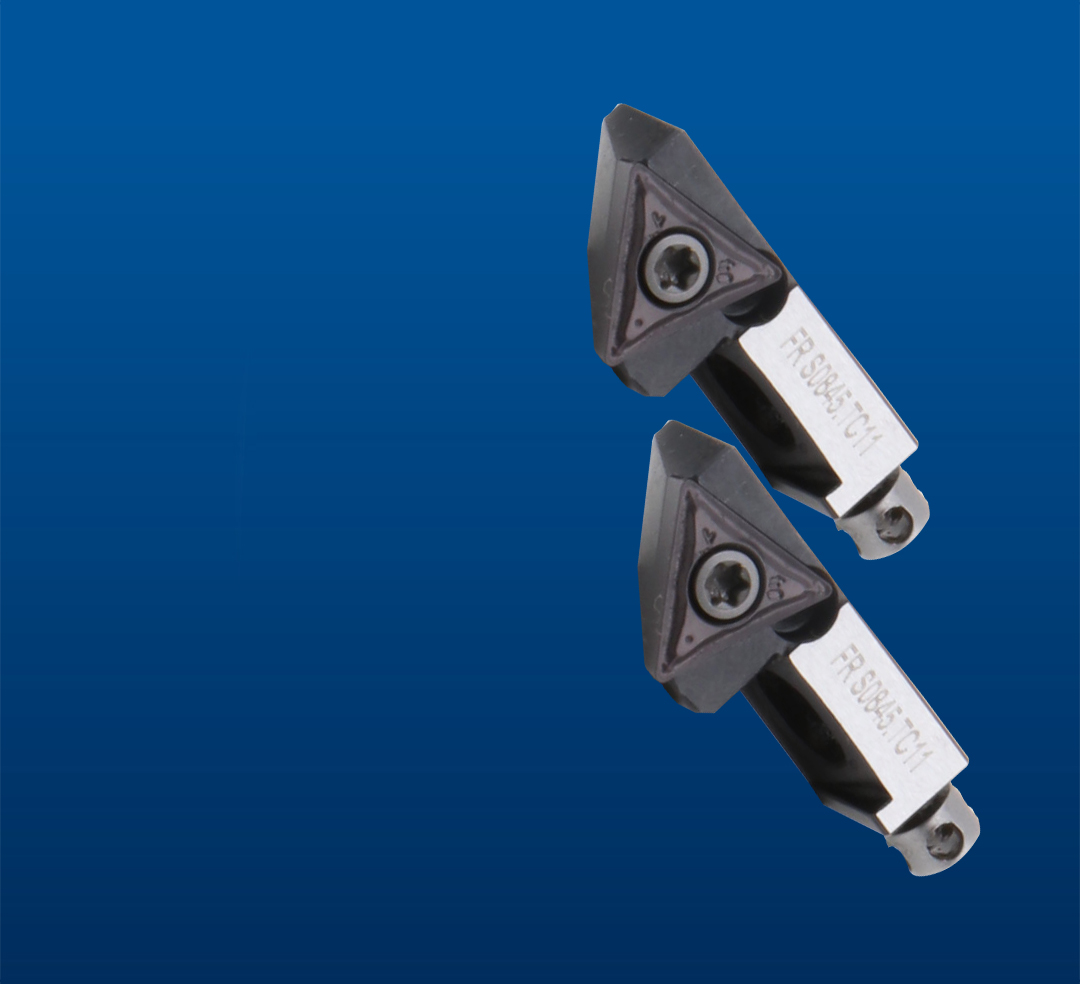

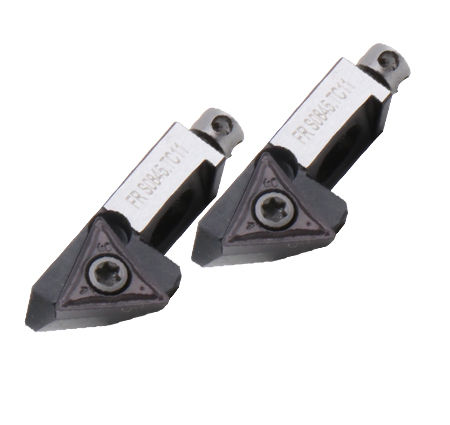

Modular knife (K interface)
● Simple structure, long service life, strong reliability
● The main use of heavy cutting tool base is: non-standard compound tool, it is convenient to protect non-standard tool body from being damaged
● Heavy-duty cutting tool base is the tool base for heavy-duty cutting
Steel
Stainless steel
Cast iron
Non-ferrous metal
Super Heat resistant alloy
Hardened steel

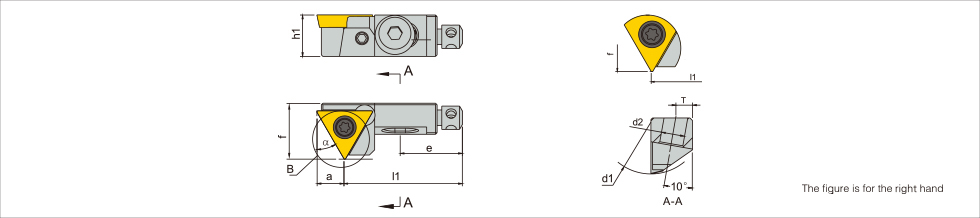

Approach angle | Right hand | Left hand | a | d1 | d2 | e | h1 | f | l1 | T | Insert |
90° | FR S0690.CP05 | FL S0690.CP05 | - | 14.5 | 3.4 | 10.5 | 6 | 8 | 25 | 2.3 | CP..0502.. |
FR S0690.CC06 | FL S0690.CC06 | - | 20 | 3.4 | 10.5 | 6 | 9.7 | 25 | 2.3 | CC..0602.. | |
90° | FR S0890.TC11 | FL S0890.TC11 | - | 20 | 4.5 | 12 | 8 | 11 | 28 | 3.2 | TC..1102.. |
45° | FR S0845.TC11 | FL S0845.TC11 | 7.4 | 20 | 4.5 | 12 | 8 | 10.8 | 20.6 | 3.2 | TC..1102.. |
60° | FR S0860.TC11 | FL S0860.TC11 | 9.1 | 20 | 4.5 | 12 | 8 | 11 | 18.9 | 3.2 | TC..1102.. |
30° | FR S0830.TC11 | FL S0830.TC11 | 5.2 | 20 | 4.5 | 12 | 8 | 10.8 | 22.8 | 3.2 | TC..1102.. |
75° | FR S0875.TC11 | FL S0875.TC11 | 10.1 | 20 | 4.5 | 12 | 8 | 11 | 17.9 | 3.2 | TC..1102.. |
●Inserts with different materials should be ordered separately,please click here.
