Product Features

●The connecting rod mainly increases the length when the effective length of the arbor is insufficient to meet the processing requirements

● The connecting rod adopts the Sonde modular K interface, it is easy to assemble different thick and fine boring tools and matching Shanks

● The long connecting rod can increase the length of modular combination normally only in the 5 times diameter of the tool, and the rigidity of the tool itself must be taken into account when the diameter is more than 5 times

Steel
Stainless steel
Cast iron
Non-ferrous metal
Super Heat resistant alloy
Hardened steel

Product Ranges

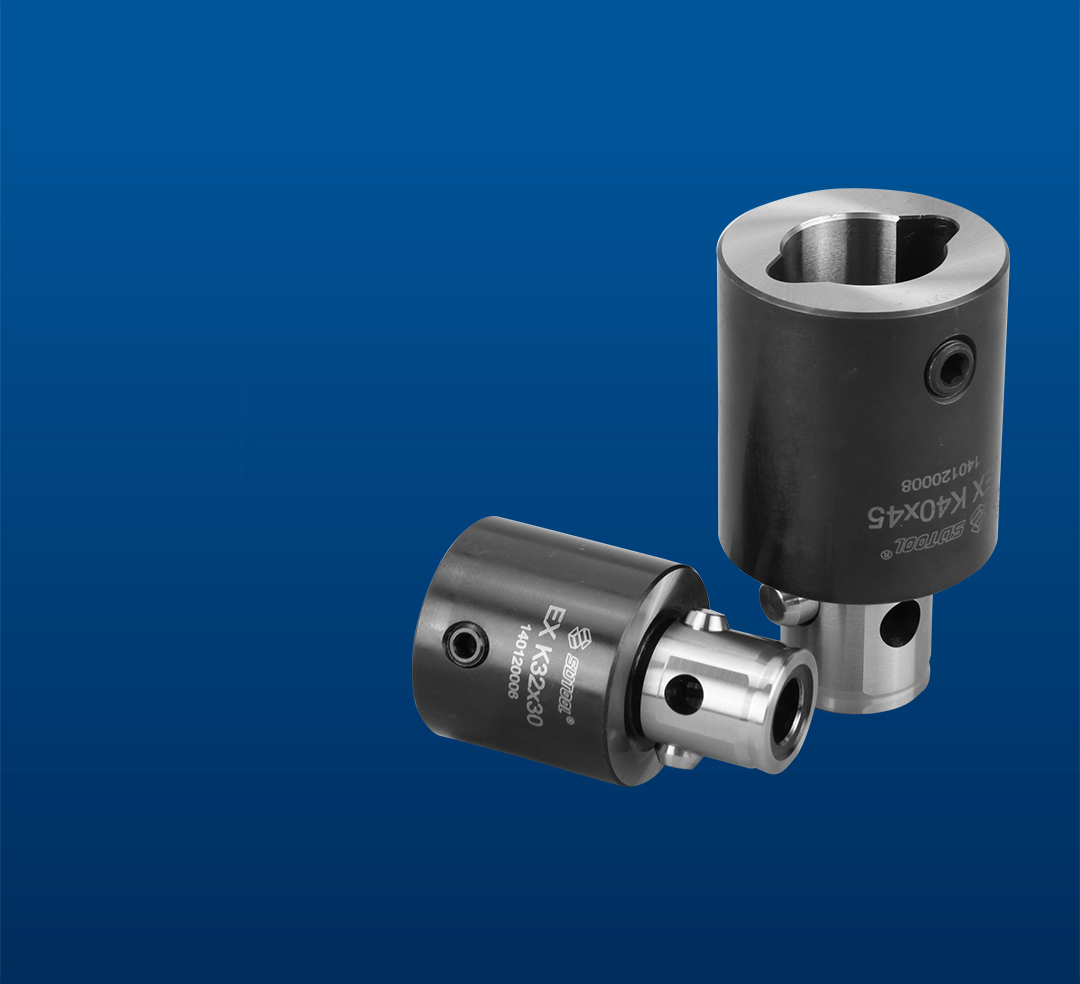

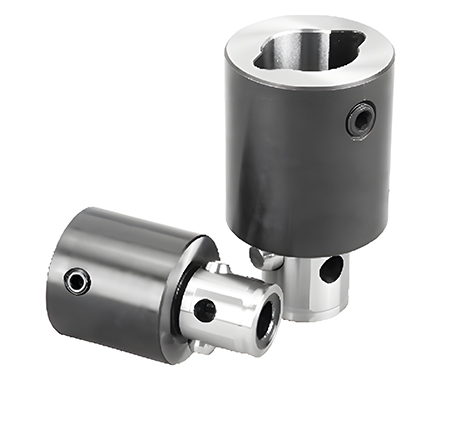

Extension with Type K Connection


Designation	D	X1	Kg
EX K19x20	19	20	0.04
EX K19x30	19	30	0.06
EX K25x30	25	30	0.1
EX K25x45	25	45	0.16
EX K32x30	32	30	0.17
EX K32x45	32	45	0.25
EX K40x45	40	45	0.39
EX K40x60	40	60	0.53
EX K50x60	50	60	0.83
EX K50x90	50	90	1.25
EX K63x60	63	60	1.32
EX K63x100	63	100	2.22
EX K90x105	88	105	4.59

●The adaptor should be ordered separately, please click here.

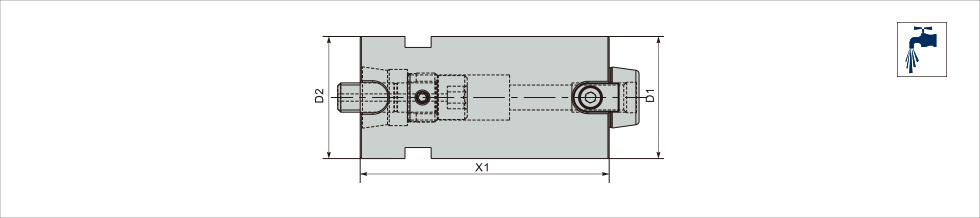

Extension with Type E Connection

Designation	D1	D2	X1	Kg
EX E25-E25x50.C	25	25	50	0.2
EX E25-E25x75.C	25	25	75	0.25
EX E32-E32x50.C	32	32	50	0.3
EX E32-E32x80.C	32	32	80	0.5
EX E40-E40x55.C	40	40	55	0.5
EX E40-E40x75.C	40	40	75	0.65
EX E40-E40x100.C	40	40	100	0.9
EX E50-E50x60.C	50	50	60	0.9
EX E50-E50x80.C	50	50	80	1.15
EX E50-E50x100.C	50	50	100	1.45
EX E63-E63x80.C	63	63	80	1.8
EX E63-E63x100.C	63	63	100	2.25
EX E63-E63x120.C	63	63	120	2.7
EX E80-E80x100.C	80	80	100	3.6
EX E80-E80x120.C	80	80	120	4.35
EX E80-E80x140.C	80	80	140	5.1
EX E80-E80x160.C	80	80	160	5.8

●The adaptor should be ordered separately, please click here.

●Spare parts: please click here.

Latest information updating....

加工中照片.jpg 刀具图片.jpg 加工后图片.jpg

Tool information	Existing cutting tool 1	Existing cutting tool 2	Test Tool 2
Brand	BIG	BIG	SOMGDE
Cutter body (cutter head, arbor, Shank) model	SLN200-270(Rough Boring Tool）	SLN200-270（Precision Boring Tool）	SNL 210-290.C
Cutter body (cutter head, arbor, Shank) model	SLN200-270(Rough Boring Tool）	SLN200-270（Precision Boring Tool）	（Coarse and Fine Boring Tool）
Diameter(mm)	240	240	240
Number of teeth	2	1	1
Blade and cutting tool type	CCMT 120408	TCGT110204L AC520U（BIG）	TCGT110204L AC520U(BIG)
Number of blade/blade	2	3	3
Speed(rpm)	210	200	300
Linear Velocity VC(M/min)	158	150	225
Feed rate per tooth(mm/z)	0.107	0.18	0.132
Per feed transfer(mm/rev)	0.214	0.18	0.132
Table/spindle feed(mm/min)	45	36	40
Cutting Depth ap(mm)	4	4	4
Processing Surface roughnessRa		Ra4.0	Ra3.0
Processing length L(mm)	280	280	280
Single piece processing time(S）	373	467	420
Number of work pieces processed		1	1

August 21 test, provided by the customer blade, test knife body size stability, coarse and fine one-way vibration-free knife phenomenon, up and down hole size changes in. 005, save half precision time 6.2 min, test results approved by customers.
