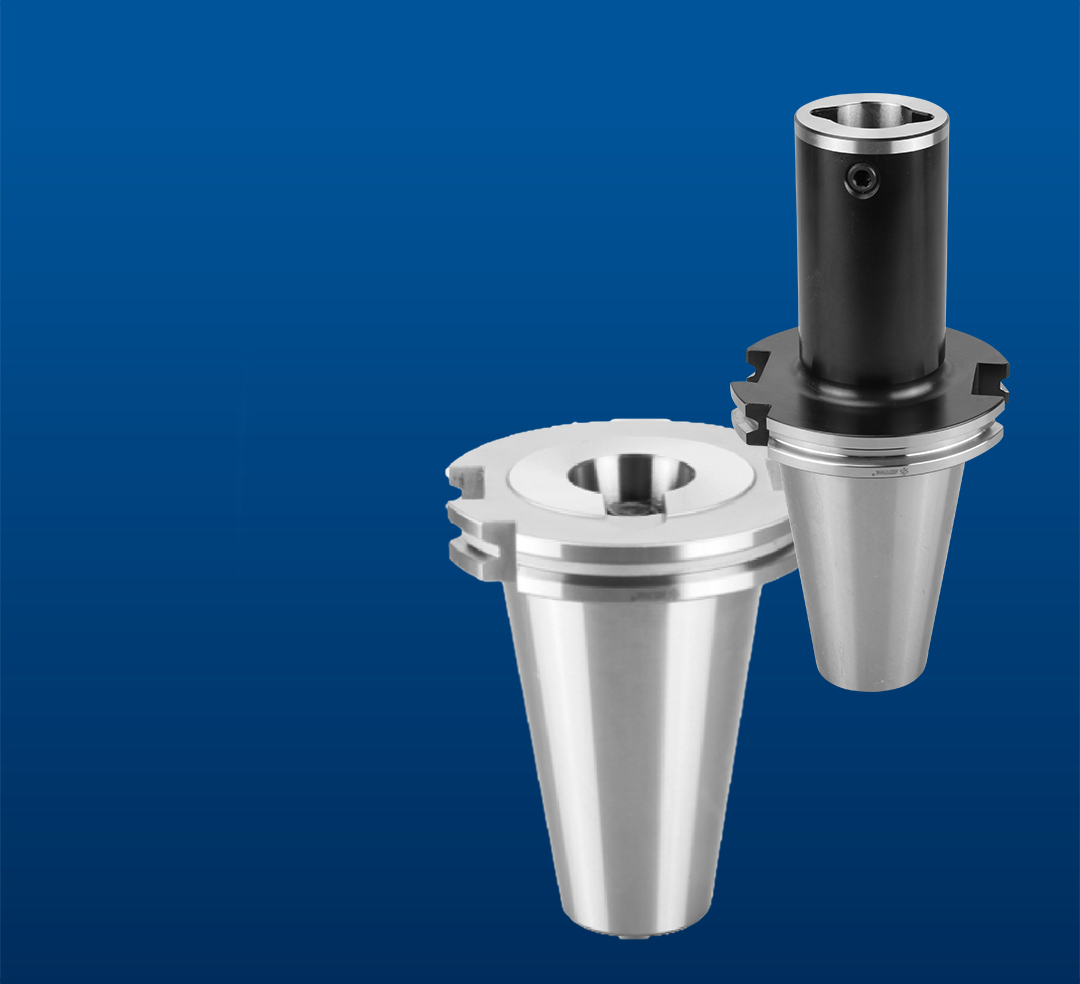

DIN69871-A Adaptor

Home > Product Lines > Hole Making > Boring System>DIN69871-A Adaptor

Overview
How to use
Successful Cases
Related Videos

Product Features

● Handle form: DIN69871-A 30/40/50

● K interface form: K19, K25, K32, K40, K50, K63, K90

● Effective length: 70-350mm, the rest of the length can be customized according to customer needs

Steel
Stainless steel
Cast iron
Non-ferrous metal
Super Heat resistant alloy
Hardened steel

Product Ranges

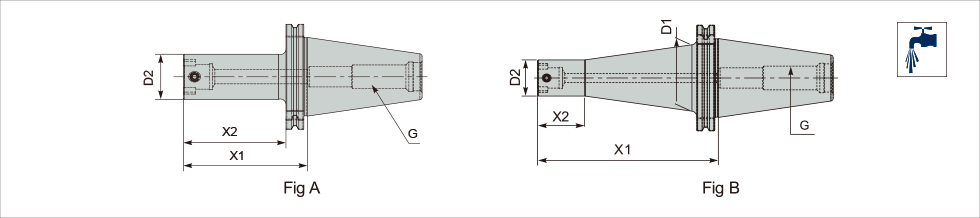

DIN69871-A Adaptor with Type K Connection

DIN69871-A K接口刀柄.jpg

Designation	ISO	D1	D2	X1	X2	G	Fig	Kg
DIN69871 30 K19x70	30	31	19	70	38	M12	B	0.44
DIN69871 30 K25x70	30	-	25	70	50.9	M12	A	0.47
DIN69871 30 K32x75	30	-	32	75	55.9	M12	A	0.59
DIN69871 30 K40x50	30	-	40	50	30.9	M12	A	0.5
DIN69871 30 K50x50	30	-	50	50	30.9	M12	A	0.6
DIN69871 40 K19x70	40	31	19	70	38	M16	B	0.97
DIN69871 40 K25x50	40	-	25	50	30.95	M16	A	0.91
DIN69871 40 K25x85	40	-	25	85	65.95	M16	A	1.04
DIN69871 40 K25x100	40	-	25	100	80.95	M16	A	1.05
DIN69871 40 K32x50	40	-	32	50	30.95	M16	A	0.95
DIN69871 40 K32x90	40	-	32	90	70.95	M16	A	1.18
DIN69871 40 K32x115	40	-	32	115	95.95	M16	A	1.31
DIN69871 40 K40x50	40	-	40	50	30.95	M16	A	0.99
DIN69871 40 K40x100	40	-	40	100	80.95	M16	A	1.44
DIN69871 40 K40x140	40	-	40	140	120.95	M16	A	1.82
DIN69871 40 K50x50	40	-	50	50	30.95	M16	A	1.1
DIN69871 40 K50x100	40	-	50	100	80.95	M16	A	1.77
DIN69871 40 K50x150	40	-	50	150	130.95	M16	A	2.53
DIN69871 40 K63x60	40	-	63	60	40.95	M16	A	1.35
DIN69871 40 K63x120	40	-	63	120	100.95	M16	A	2.64
DIN69871 40 K63x165	40	-	63	165	145.95	M16	A	3.7
DIN69871 50 K19x100	50	31	19	100	42	M24	B	2.81
DIN69871 50 K25x70	50	50	25	70	22	M24	B	2.84
DIN69871 50 K25x110	50	50	25	110	62	M24	B	2.98
DIN69871 50 K25x140	50	50	25	140	32	M24	B	3.39
DIN69871 50 K32x70	50	-	32	70	50.95	M24	A	2.8
DIN69871 50 K32x120	50	-	32	120	100.95	M24	A	3.09
DIN69871 50 K32x160	50	60	32	160	42	M24	B	4.01
DIN69871 50 K40x70	50	-	40	70	50.95	M24	A	2.91
DIN69871 50 K40x110	50	-	40	110	90.95	M24	A	3.26
DIN69871 50 K40x160	50	-	40	160	140.95	M24	A	3.7
DIN69871 50 K40x200	50	-	40	200	180.95	M24	A	4.05
DIN69871 50 K50x70	50	-	50	70	50.95	M24	A	3.11
DIN69871 50 K50x110	50	-	50	110	90.95	M24	A	3.68
DIN69871 50 K50x160	50	-	50	160	140.95	M24	A	4.37
DIN69871 50 K50x210	50	-	50	210	190.95	M24	A	5.1
DIN69871 50 K50x230	50	-	50	230	210.95	M24	A	5.38
DIN69871 50 K50x250	50	-	50	250	230.95	M24	A	5.66
DIN69871 50 K63x80	50	-	63	80	60.95	M24	A	3.59
DIN69871 50 K63x160	50	-	63	160	140.95	M24	A	5.38
DIN69871 50 K63x230	50	-	63	230	210.95	M24	A	6.96
DIN69871 50 K63x260	50	-	63	260	240.95	M24	A	7.63
DIN69871 50 K63x280	50	-	63	280	260.95	M24	A	8.08
DIN69871 50 K63x300	50	-	63	300	280.95	M24	A	8.53
DIN69871 50 K90x100	50	-	88	100	80.95	M24	A	5.34
DIN69871 50 K90x180	50	-	88	180	160.95	M24	A	8.93
DIN69871 50 K90x250	50	-	88	250	230.95	M24	A	12.07
DIN69871 50 K90x320	50	-	88	320	300.95	M24	A	15.21
DIN69871 50 K90x350	50		88	350	330.95	M24	A	16.56

●If needing the hole for data chip, please add ".X" at the end of the designation.

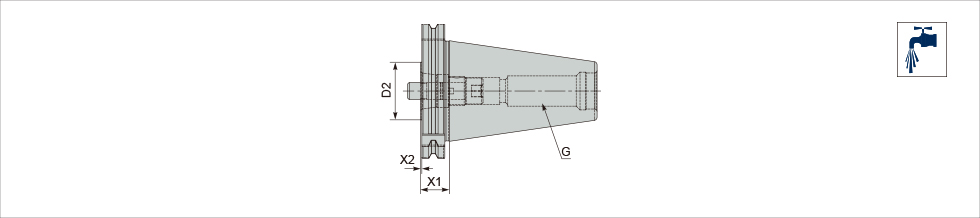

DIN69871-A Adaptor with Type E Connection


Designation	ISO	D2	X1	X2	G	Kg
DIN69871 40 E25.C	40	25	20	1	M16	0.8
DIN69871 40 E32.C	40	32	20	1	M16	0.8
DIN69871 40 E40.C	40	40	20	1	M16	0.8
DIN69871 40 E50.C	40	50	20	1	M16	0.8
DIN69871 40 E63.C	40	63	50	31	M16	1.2
DIN69871 40 E80.C	40	80	72	52.95	M16	1.8
DIN69871 50 E25.C	50	25	20	0.85	M24	2.6
DIN69871 50 E32.C	50	32	20	0.85	M24	2.6
DIN69871 50 E40.C	50	40	20	0.85	M24	2.6
DIN69871 50 E50.C	50	50	20	0.85	M24	2.6
DIN69871 50 E63.C	50	63	20	0.85	M24	2.5
DIN69871 50 E80.C	50	80	24	4.85	M24	2.5

●If needing the hole for data chip, please add ".X" at the end of the designation.

Latest information updating....

加工中照片.jpg 刀具图片.jpg 加工后图片.jpg

Tool information	Existing cutting tool 1	Existing cutting tool 2	Test Tool 2
Brand	BIG	BIG	SOMGDE
Cutter body (cutter head, arbor, Shank) model	SLN200-270(Rough Boring Tool）	SLN200-270（Precision Boring Tool）	SNL 210-290.C
Cutter body (cutter head, arbor, Shank) model	SLN200-270(Rough Boring Tool）	SLN200-270（Precision Boring Tool）	（Coarse and Fine Boring Tool）
Diameter(mm)	240	240	240
Number of teeth	2	1	1
Blade and cutting tool type	CCMT 120408	TCGT110204L AC520U（BIG）	TCGT110204L AC520U(BIG)
Number of blade/blade	2	3	3
Speed(rpm)	210	200	300
Linear Velocity VC(M/min)	158	150	225
Feed rate per tooth(mm/z)	0.107	0.18	0.132
Per feed transfer(mm/rev)	0.214	0.18	0.132
Table/spindle feed(mm/min)	45	36	40
Cutting Depth ap(mm)	4	4	4
Processing Surface roughnessRa		Ra4.0	Ra3.0
Processing length L(mm)	280	280	280
Single piece processing time(S）	373	467	420
Number of work pieces processed		1	1

August 21 test, provided by the customer blade, test knife body size stability, coarse and fine one-way vibration-free knife phenomenon, up and down hole size changes in. 005, save half precision time 6.2 min, test results approved by customers.
